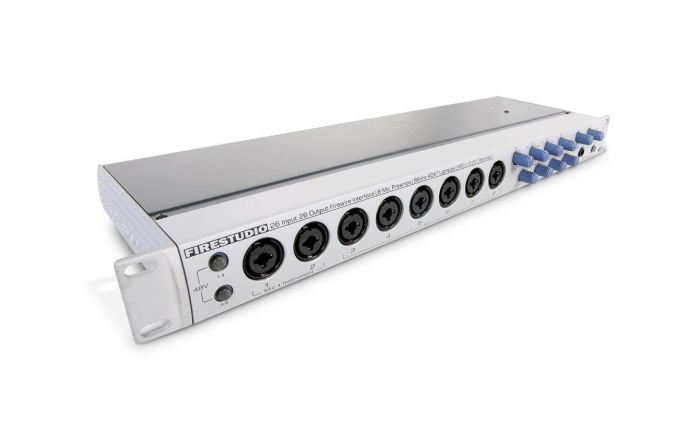

Caratteristiche principali

• Interfaccia FireWire (IEEE 1394)
• Risoluzione a 24 bit, sino a 96khz di frequenza di campionamento
• 26 ingressi ed uscite simultanee
• 8 preamplificatori microfonici in Classe A con controllo del guadagno
• 8 ingressi analogici di linea, 2 Iingressi instrument ad alta impedenza
• 8 uscite analogiche linea
• 16 canali tramite interfaccia ottica ADAT I/O (8 ch. a 96kHz con protocollo SMUX)
• S/PDIF I/O, MIDI I/O
• JetPLL - tecnologia di eliminazione del jitter
• Software per il routing/mixing/monitoring su DSP a latenza zero

  PreSonus ProPak Complete Audio Software Suite with Cubase LE, Reason Adapted, Amplitube LE, BFD Lite, Drumagog LE e altro

  Specifiche Tecniche

  PREAMPLIFICATORI MICROFONICI

  Frequency Response (+0,- 0.5dB): 20Hz to 50KHz

  Frequency Response (+0/-3.0 dB): 20Hz to 150KHz

  Input Impedance: 1600 Ohm

  THD+N (unwtd, 1KHz @ +4dBu Output, Unity Gain): 101dB

  Common Mode Rejection Ratio (1KHz, 55dB Gain): >55dB

  Gain Control Range (+/-1dB): -6dB to 55dB

  Maximum Input Level (Unity Gain, 1KHz @ 0.5% THD+N): +17dBu

  Phantom Power (+/- 2VDC): +48VDC

  Instrument Input: 1/4” TRS, Preamps 1 & 2

  Input Impedance: 1 Mega Ohm

• LINE INPUTS

  1/4” TRS, Preamps 3 to 8

  Frequency Response (+0,- 0.5dB): 20Hz to 50KHz

  Frequency Response (+0/-3.0 dB): 20Hz to 150KHz

  Input Impedance (Balanced): 10 KOhm

  THD+N (unwtd, 1KHz @ +4dBu Output, Unity Gain): 101dB

  Gain Control Range (+/-1dB): -9dB to +12dB

  Maximum Input Level (Unity Gain, 1KHz @ 0.5% THD+N): +23dBu

• INSERT JACKS (1/4” TRS)

  Send Output Impedance (Unbalanced, Ring): 51 Ohm

  Return Input Impedance (Unbalanced, Tip): 10 KOhm

• DIRECT OUTPUTS/DAC OUTPUTS (1/4” TRS)

  Output Impedance (Impedance Balanced): 51 Ohm

• SIGNAL LEVEL LEDs

  Clip (+/- 0.5dBu): +18dBu

• DIGITAL AUDIO

  ADC Dynamic Range (Awtd, 48KHz Sample Rate): 107dB

  DAC Dynamic Range (Awtd, 48KHz Sample Rate): 110dB

  Bit Depth: 24

  Reference Level for 0dBFS: +18dBu

  Digital Audio Output (2-Toslink Connectors, 8 channels): ADAT/SMUX

  Digital Audio Input (2-Toslink Connectors, 8 channels): ADAT/SMUX

  Internal Sample Frequency Selections (KHz): 44.1, 48, 88.2, 96

  External Sample Frequency Inputs: BNC, ADAT (SMUX), S/PDIF

  BNC Word Clock Output Level (75 Ohm load): 4.5V

  BNC Word Clock Input Level Range: 3.0 to 5.5V

• POWER

  Input Voltage Range: 18 to 30VDC

  Power Requirements (Continuous): 24W

  DC Input Connector Type = 5.5mm OD/2.1mm ID Barrel, Center Positive

  External Switching Power Supply: 90-230VAC/35W

• DIGITAL

  Jitter Specification: < 300 pS

  Requisiti di sistema

  • Microsoft Windows XP XP1, porta FireWire, Pentium o Athlon con 1.6 GHz o superiore, memoria RAM: 512 MB o superiore (1GB raccomandato)
  • Mac OSX ver. 10.4.x, Apple Macintosh con porta FireWire incorporata, PowerPC G4/Dual 1 GHz o superiore. Tutti i modelli Intel based supportati, memoria RAM: 512 MB o superiore (1GB raccomandato)
